Name: 50bpm Quad Seal Vertical Form Fill Seal Machine For Max Bag Width 250mm
Brand: ConFil System
SKU: CFP-SV500-C
Price: 10,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Vertical Form Fill Seal Machine

Typical Applications: Free Flow Granulars

Film Roll Width: Max. 520mm

Bag Width: 80 - 230mm On Pillow Bag

Bag Length: 230 - 350mm On Pillow Bag

Power Supply: 200 - 240Vac, Single Phase, 50 / 60Hz, 3.0kW

Frame Structure: Stainless Steel 304

Machine Weight: Approx. 450 KG

Highlight:

Quad Seal Vertical Form Fill Seal Machine

vertical ffs machine 250mm

50bpm Vertical Form Fill Seal Machine

Basic Infomation

Place of Origin: China

Brand Name: ConFil Partner

Certification: CE

Model Number: CFP-SV500-C

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 10 - 25 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 60 sets per month

Gallery

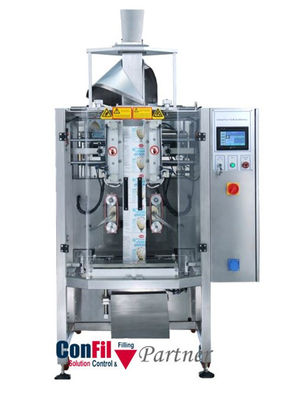

50bpm Quad Seal Vertical Form Fill Seal Machine For Max Bag Width 250mm

Product Description

Vertical Form Fill Seal Machine Quad Seal for Max Bag Width 250mm

Vertical Form Fill Seal Machines are built by ConFil Partner, they have over 15 years experince in VFFS design, are familiar with Siemens Motion Control, trustful partner.

CFP-SV500-C is intermittent motion VFFS, Config for Quad-seal package, with max. speed 50bpm.

Specifications

Model: CFP-SV500-C
Max. speed: 50bpm
Film system	Film roll loading	•Hand wheel •Max. film width 520mm •Max. outer diameter of film roll 360mm
	Film pulling	•Servo control •Double belt pulling •Optical sensor for tracking mark
	Printing	•Ribbon printer.
Forming system		•Forming tube change over without tool •Film position adjusted in HMI
	Package size (on pillow bag)	•Width 80 ~ 230mm •Length 230 ~ 350mm
Sealing system	Vertical sealing	•Single sealing bar made in copper
	Horizontal sealing	•Sealing jaws made in copper •Pneumatic control •Cutting blade
Safety system	•Main power isolator •Operation key •Emergency stop button •Sensor on all doors •Movement stop and alarm in HMI
compressed air supply	0.4 m³/min, 6 bar
Power supply	220 Vac single phase, 50Hz, 4kW
Machine frame material	Stainless steel SUS304
Machine weight	Approx. 650Kg

ConFil product range:

Multihead Weigher
Checkweigher

We also provide ConFil Partner products:

Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
Vertical Form-Fill-Seal machine
Tray Denester
Metal detector

50bpm Quad Seal Vertical Form Fill Seal Machine For Max Bag Width 250mm 0

Please contact us for the unique solution !
