SS304 Free Flow Granulars Vertical Packing Machine 420mm

1 set
MOQ
USD9000 - 11000 per set
Price
SS304 Free Flow Granulars Vertical Packing Machine 420mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Vertical Form Fill Seal Machine
Typical Applications: Free Flow Granulars
Film Roll Width: Max. 420mm
Bag Width: 60 - 200mm On Pillow Bag
Bag Length: 50 -230mm On Pillow Bag
Power Supply: 200 - 240Vac, Single Phase, 50 / 60Hz, 3.0kW
Frame Structure: Stainless Steel 304
Machine Weight: Approx. 450 KG
High Light:

SS304 vertical packing machine

,

SS304 vertical packaging machine

,

vertical packing machine 420mm

Basic Infomation
Place of Origin: China
Brand Name: ConFil Partner
Certification: CE
Model Number: CFP-SV400-A
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 10 - 25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Product Description

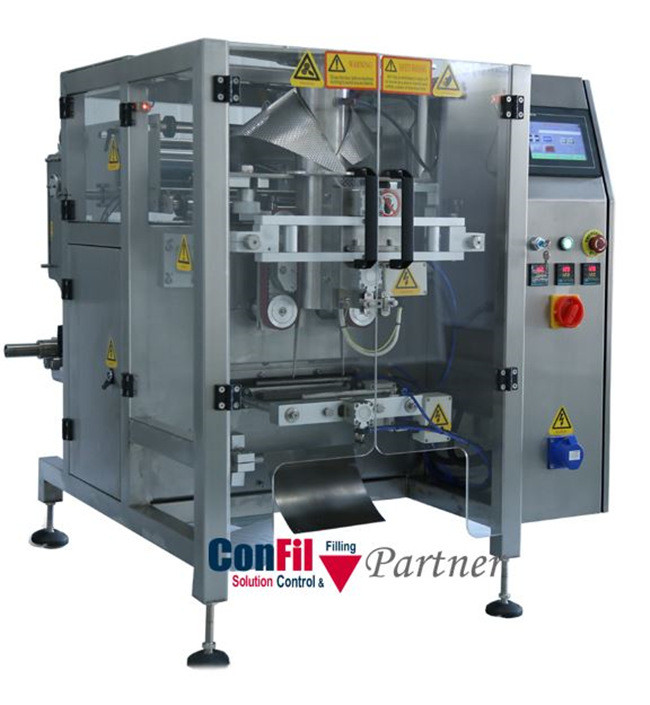

Vertical Form Fill Seal Machine for Max Film Width 420mm Servo Control





Vertical Form Fill Seal Machines are  built by ConFil Partner, they have over 15 years experince in VFFS design, are familiar with Siemens Motion Control, trustful partner.

CFP-SV400-A is intermittent motion VFFS, with max. speed 60bpm.



Specifications

 Model: CFP-SV400-A
 Max. speed: 60bpm
Film system Film roll loading
•Hand wheel
•Max. film width 420mm
•Max. outer diameter of film roll 360mm
Film pulling
•Servo control
•Double belt pulling
•Optical sensor for tracking mark
Printing
•Ribbon printer.

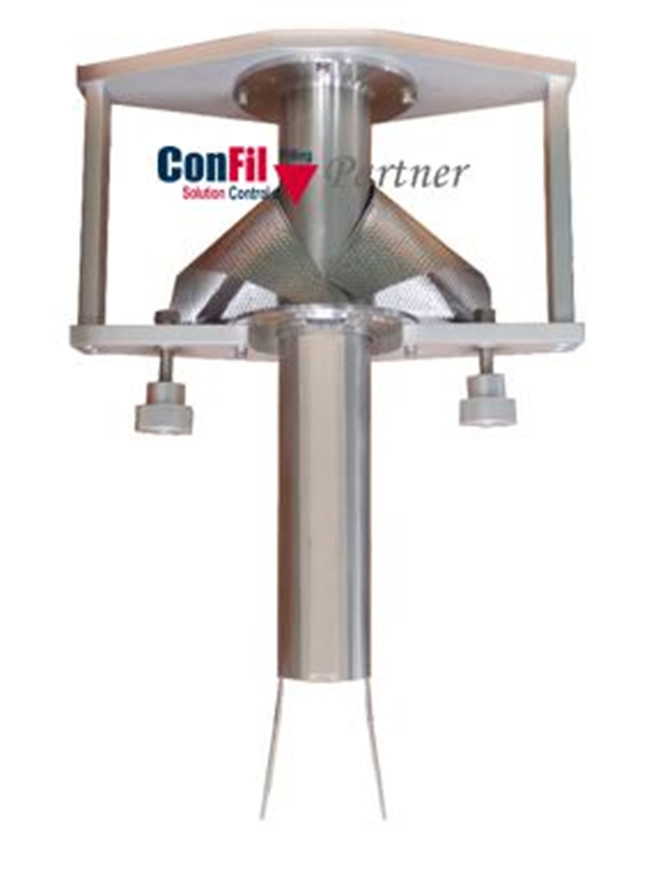

Forming system
•Forming tube change over without tool
•Film position adjusted in HMI

Package size

(on pillow bag)

•Width 60 ~ 200mm
•Length 50 ~ 230mm
Sealing system Vertical sealing
•Single sealing bar made in copper
Horizontal sealing
•Sealing jaws made in copper
•Pneumatic control
•Cutting blade

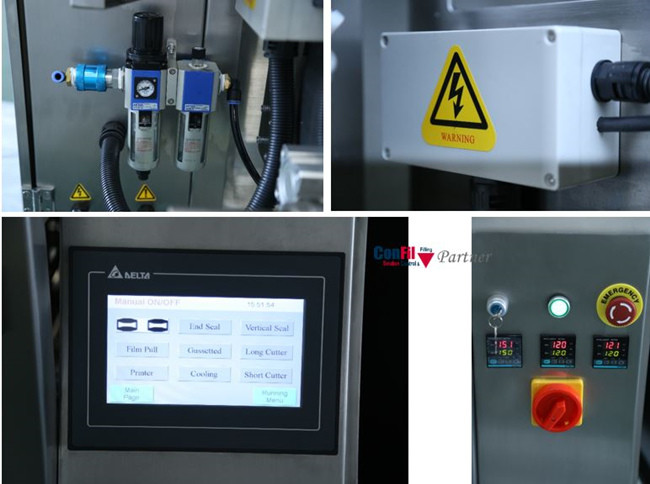

Safety system
•Main power isolator
•Operation key
•Emergency stop button
•Sensor on all doors
•Movement stop and alarm in HMI
compressed air supply 0.2 m³/min, 6 bar
Power supply 220 Vac single phase, 50Hz, 3Kw
Machine frame material Stainless steel SUS304
Machine weight Approx. 450Kg







ConFil product range:

  • Multihead Weigher
  • Checkweigher



We also provide ConFil Partner products:

  • Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
  • Vertical Form-Fill-Seal machine
  • Tray Denester
  • Metal detector

SS304 Free Flow Granulars Vertical Packing Machine 420mm 0

Please contact us for the unique solution !
