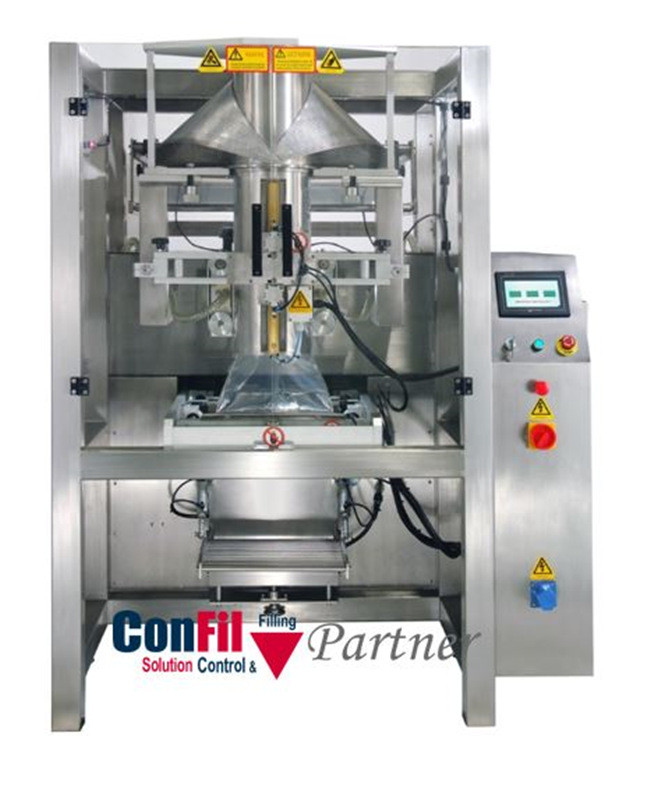

Vertical Form Fill Seal Machine 820 for Max Film Width 820mm
Vertical Form Fill Seal Machines are built by ConFil Partner, they have over 15 years experince in VFFS design, are familiar with Siemens Motion Control, trustful partner.
CFP-SV800 is intermittent motion VFFS, with max. speed 60bpm.
Specifications
| Model: CFP-SV800 | ||
| Max. speed: 60bpm | ||
| Film system | Film roll loading |
•Hand wheel
•Max. film width 820mm
•Max. outer diameter of film roll 360mm
|
| Film pulling |
•Servo control
•Double belt pulling
•Optical sensor for tracking mark
|
|
| Printing |
•Ribbon printer.
|
|
| Forming system |
•Forming tube change over without tool
•Film position adjusted in HMI
|
|
|
Package size (on pillow bag) |
•Width 110 ~ 400mm
•Length 50 ~ 400mm
|
|
| Sealing system | Vertical sealing |
•Single sealing bar made in copper
|
| Horizontal sealing |
•Sealing jaws made in copper
•Pneumatic control
•Cutting blade
|
|

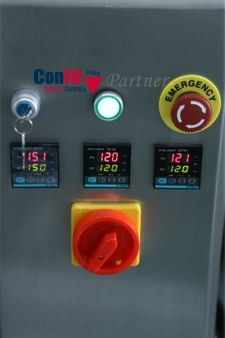

| Safety system |
•Main power isolator
•Operation key
•Emergency stop button
•Sensor on all doors
•Movement stop and alarm in HMI
|
|
| compressed air supply | 0.4 m³/min, 6 bar | |
| Power supply | 220 Vac single phase, 50Hz, 5kW | |
| Machine frame material | Stainless steel SUS304 | |
| Machine weight | Approx. 850Kg | |
