550Kg Vertical Form Fill Seal Packaging Max Film Width 520mm Servo Control

1 set
MOQ
USD9000 - 11000 per set
Price
550Kg Vertical Form Fill Seal Packaging Max Film Width 520mm Servo Control
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Vertical Form Fill Seal Machine
Typical Applications: Free Flow Granulars
Film Roll Width: Max. 520mm
Bag Width: 50 - 250mm On Pillow Bag
Bag Length: 50 - 300mm On Pillow Bag
Power Supply: 200 - 240Vac, Single Phase, 50 / 60Hz, 3.5kW
Frame Structure: Stainless Steel 304
Machine Weight: Approx. 550 KG
High Light:

550Kg vertical form fill seal packaging

,

550Kg vffs machine

,

520mm vertical form fill seal packaging

Basic Infomation
Place of Origin: China
Brand Name: ConFil Partner
Certification: CE
Model Number: CFP-SV500-B
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 10 - 25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Product Description

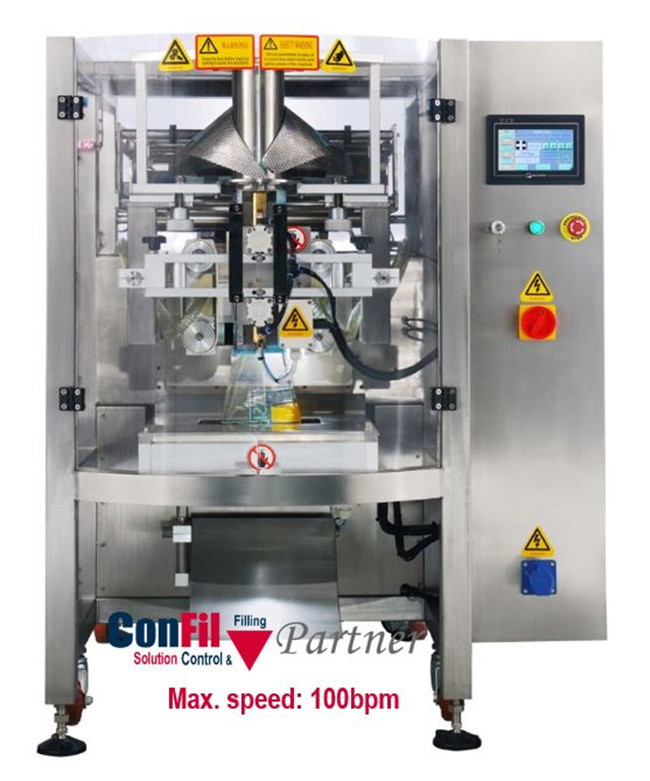

Vertical Form Fill Seal Machine 520 for Max Film Width 520mm Servo Control





Vertical Form Fill Seal Machines are  built by ConFil Partner, they have over 15 years experince in VFFS design, are familiar with Siemens Motion Control, trustful partner.

CFP-SV500-B is intermittent motion VFFS, sealing jaws are driven by servo motors, with max. speed 100bpm.



Specifications

 Model: CFP-SV500-B
 Max. speed: 100bpm
Film system Film roll loading
Air inflation axis
•Max. film width 520mm
•Max. outer diameter of film roll 360mm
Film pulling
•Servo control
•Double belt pulling
•Optical sensor for tracking mark
Printing
•Ribbon printer.
Forming system
•Forming tube change over without tool
•Film position adjusted in HMI

Package size

(on pillow bag)

Width 50 ~ 250mm
•Length 50 ~ 300mm
Sealing system Vertical sealing
•Single sealing bar made in copper
Horizontal sealing
•Sealing jaws made in copper
•Servo control
•Cooling system
•Cutting blade
Safety system
•Main power isolator
•Operation key
•Emergency stop button
•Sensor on all doors
•Movement stop and alarm in HMI
compressed air supply 0.36 m³/min, 6 bar
Power supply 220 Vac single phase, 50Hz, 3.5Kw
Machine frame material Stainless steel SUS304
Machine weight Approx. 550Kg





ConFil product range:

  • Multihead Weigher
  • Checkweigher



We also provide ConFil Partner products:

  • Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
  • Vertical Form-Fill-Seal machine
  • Tray Denester
  • Metal detector

Please contact us for the unique solution !
