Name: Max Film Width 420mm Vertical Form Fill Seal Machine Servo Control
Brand: ConFil System
SKU: CFP-SV400-B
Price: 10,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Vertical Form Fill Seal Machine

Typical Applications: Free Flow Granulars

Film Roll Width: Max. 420mm

Bag Width: 60 - 200mm On Pillow Bag

Bag Length: 50 -230mm On Pillow Bag

Power Supply: 200 - 240Vac, Single Phase, 50 / 60Hz, 3.5kW

Machine Weight: Approx. 450 KG

Frame Structure: Stainless Steel 304

Highlight:

420mm Vertical Form Fill Seal Machine

420mm vffs machine

450 KG Vertical Form Fill Seal Machine

Basic Infomation

Place of Origin: China

Brand Name: ConFil Partner

Certification: CE

Model Number: CFP-SV400-B

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 10 - 25 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 60 sets per month

Gallery

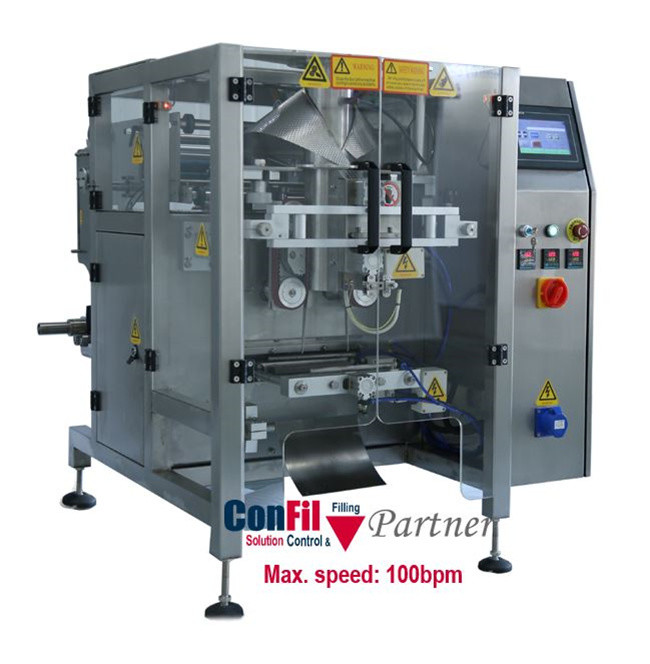

Max Film Width 420mm Vertical Form Fill Seal Machine Servo Control

Product Description

Vertical Form Fill Seal Machine for Max Film Width 420mm Servo Control

Max Film Width 420mm Vertical Form Fill Seal Machine Servo Control 0

Vertical Form Fill Seal Machines are built by ConFil Partner, they have over 15 years experince in VFFS design, are familiar with Siemens Motion Control, trustful partner.

CFP-SV400-B is intermittent motion VFFS, sealing jaws are driven by servo motor, with max. speed 100bpm and less air comsuption

Specifications

Model: CFP-SV400-B
Max. speed: 100bpm
Film system	Film roll loading	•Air inflation axis •Max. film width 420mm •Max. outer diameter of film roll 360mm
	Film pulling	•Servo control •Double belt pulling •Optical sensor for tracking mark
	Printing	•Ribbon printer.
Forming system		•Forming tube change over without tool •Film position adjusted in HMI
	Package size (on pillow bag)	•Width 60 ~ 200mm •Length 50 ~ 230mm
Sealing system	Vertical sealing	•Single sealing bar made in copper
	Horizontal sealing	•Sealing jaws made in copper •Servo control •Cooling system •Cutting blade
Safety system	•Main power isolator •Operation key •Emergency stop button •Sensor on all doors •Movement stop and alarm in HMI
compressed air supply	0.2 m³/min, 6 bar
Power supply	220 Vac single phase, 50Hz, 3.5Kw
Machine frame material	Stainless steel SUS304
Machine weight	Approx. 450Kg

ConFil product range:

Multihead Weigher
Checkweigher

We also provide ConFil Partner products:

Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
Vertical Form-Fill-Seal machine
Tray Denester
Metal detector

Please contact us for the unique solution !
