16 Head 3.0 Liter Multihead Weigher For Chicken Nuggets

1 set
USD10000 - 16000 per set
16 Head 3.0 Liter Multihead Weigher For Chicken Nuggets
Features Gallery Product Description Request A Quote
Product Name: Multihead Weigher Filling Packing Machine Chicken Nuggets
Weighing Head: 16 Head, 3.0 Liter
Food Contacting Surface: Sanitary Stainless Steel, Embossed
Typical Applications: Frozen Food, Fresh Food
Weighing Range: See The Table Below
Weighing Speed: See The Table Below
Accuracy: +2.0 Gram Depends On Application
Minimum Graduation: 0.1 Gram
Ingress Protection: IP 65
Power Supply: 200 - 240Vac, 50 / 60Hz, Single Phase
Machine Weight: See The Table Below
High Light:

3.0 Liter Multihead Weigher


16 Head weigher packing machine


Multihead Weigher Chicken Nuggets

Basic Infomation
Place of Origin: China
Brand Name: ConFil
Certification: CE
Model Number: FHC-214VV
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 5 - 15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Product Description

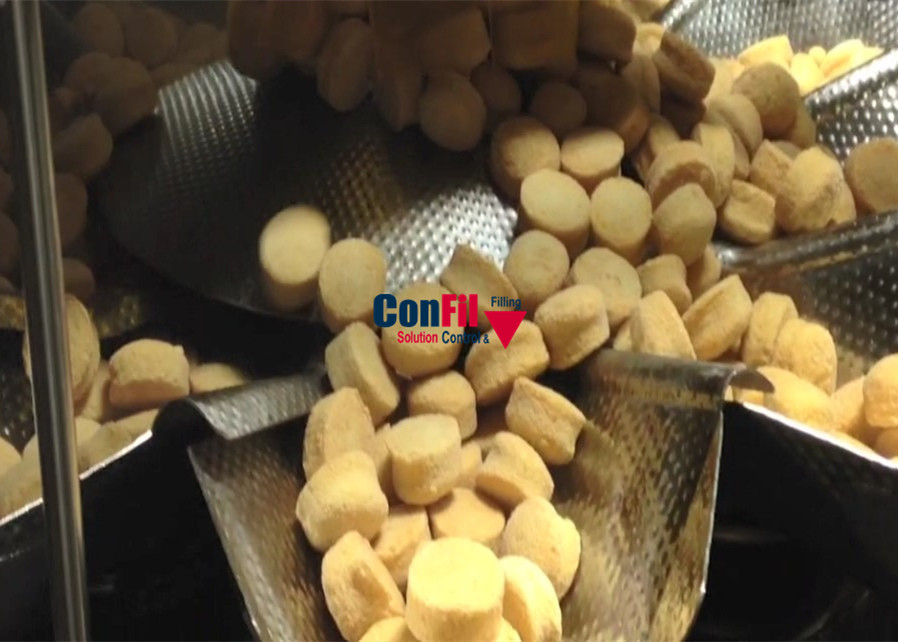

Multihead Weighing Machine Multihead Weigher for Chicken Nuggets Frozen Food Filling Machine



Generally there is temperature control system in the packaging plant for frozen food, 4 ~ 10℃ in the most applications, and in some cases it's below 0℃. In the software of the weigher, we must use "force combination" to stop the products staying too long in one hopper, to avoid the products get melted. In the machine design, we must have Anti- condensation System to stop the air turning into water, to avoid the risk of damage in eletronic system.


In our Test Center, we have cold room to test all applications which need to run in low temperature. We make sure each machine for Frozen Food are fully tested before shipment.


Hygienic Design FHC-2xx series:


1- Reduced parts in hopper.

2- All connections are fully Welded.

3- No tools need when disassembly the food contacting parts.

4- No blind area when wash down.

5- IP65 waterproof, IP69K is available on request



Numbers of

weighing head

Weighing Hopper

volume (Liter)



Range (gram)

Max. Weighing Speed

(cycles per minute)

Esteemed accuracy




(approx. Kg)


16 3.0

13 ~ 2000


+/- 2.0



ConFil product range:

  • Multihead Weigher
  • Linear Weigher
  • Checkweigher


We also provide ConFil Partner products:

  • Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
  • Vertical Form-Fill-Seal machine
  • Tray Denester
  • Metal detector

16 Head 3.0 Liter Multihead Weigher For Chicken Nuggets 0

16 Head 3.0 Liter Multihead Weigher For Chicken Nuggets 1


Please contact us for the unique solution !
