Screw Feeding Multihead Weigher For Pickles Marinated Vegetable Fruits

1 set
MOQ
USD10000 - 16000 per set
Price
Screw Feeding Multihead Weigher For Pickles Marinated Vegetable Fruits
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Multihead Weigher 14Head, 16Head With Screw Feeder For Pickle
Weighing Head: 14 Head, 16 Head, 1 Liter, 2 Liter Or 3 Liter
Food Contacting Surface: Sanitary Stainless Steel, Polished / Embossed / Teflon Coated
Typical Applications: Pickles, Marinated Food
Weighing Range: See The Table Below
Weighing Speed: Max. 85 Cycles Per Minute
Accuracy: +2.0 Gram Depends On Application
Minimum Graduation: 0.1 Gram
Ingress Protection: IP 65
Power Supply: 100 - 120Vac, 200 - 240Vac, 50 / 60Hz, Single Phase
Machine Weight: See The Table Below
High Light:

Screw Feeding Multihead Weigher

,

digital CE weighing machine for vegetables

,

Multihead Weigher Pickles Marinated

Basic Infomation
Place of Origin: China
Brand Name: ConFil
Certification: CE
Model Number: FCC-214S
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 5 - 15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Product Description

Multihead Weighing Machine Multihead Weigher for Pickles Marinated Vegetable Fruits with Screw Feeding





These preserved pickles are well-known as “Jiang Yan Cai” in China. It has over 200 years history. Prepared with salt, chili and sauces for months before packaging. One of ConFil partners who is building vacuum packaging machine sent us the inquire that one of the largest pickle producer in China was looking for proper automatic weighing solution, to replace their auger fillers and cup fillers.







Model

Numbers of

weighing head

Weighing Hopper

volume (Liter)

Recommend

weighing

Range (gram)

Max. Weighing Speed

(cycles per minute)

Esteemed accuracy

(gram)

Machine

weight

(approx. Kg)

FCC-214S-1P-DS

14 1.0

12 ~ 200

65

+/- 2.0

550

FCC-214S-2P-DS

14 2.0

25 ~ 800

65

+/- 2.0

650

FCC-214S-3P-DS

14 3.0

25 ~ 1200

60

+/- 3.0

750
FCC-216S-1P-DS 16 1.0 12 ~ 200 85 +/- 2.0 750

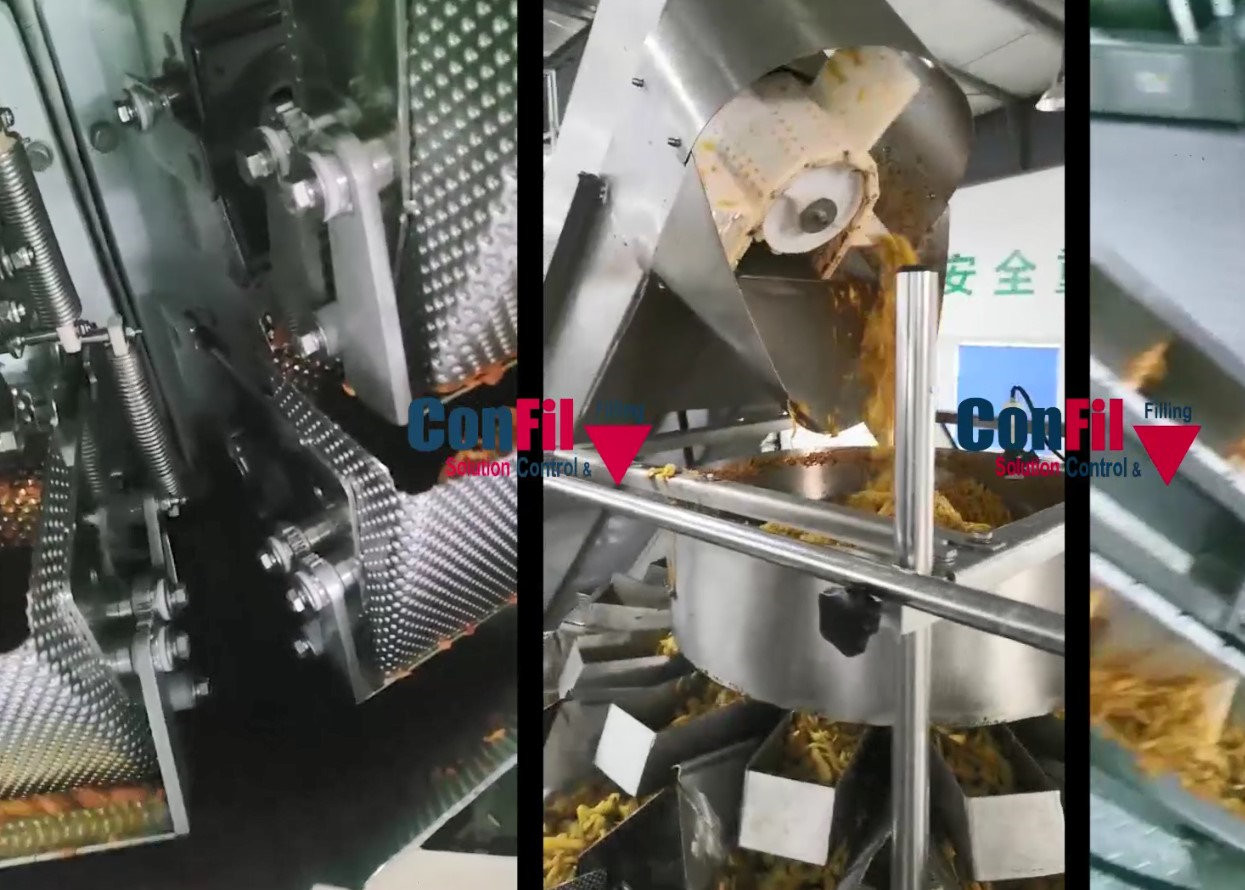

Scraper gate in double opening execution

with new weighing software, they solved the weight sampling problem which other competitors cannot.

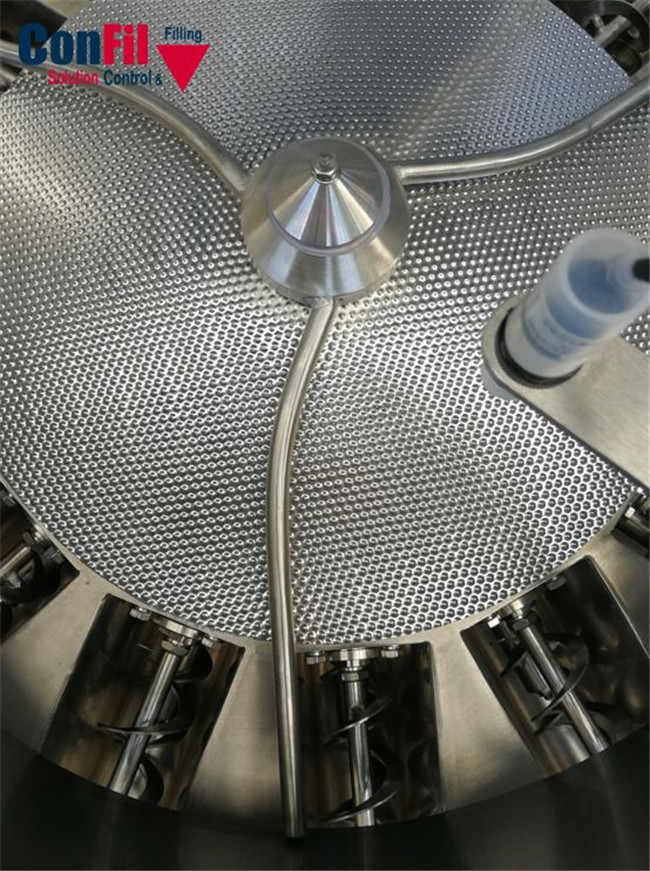

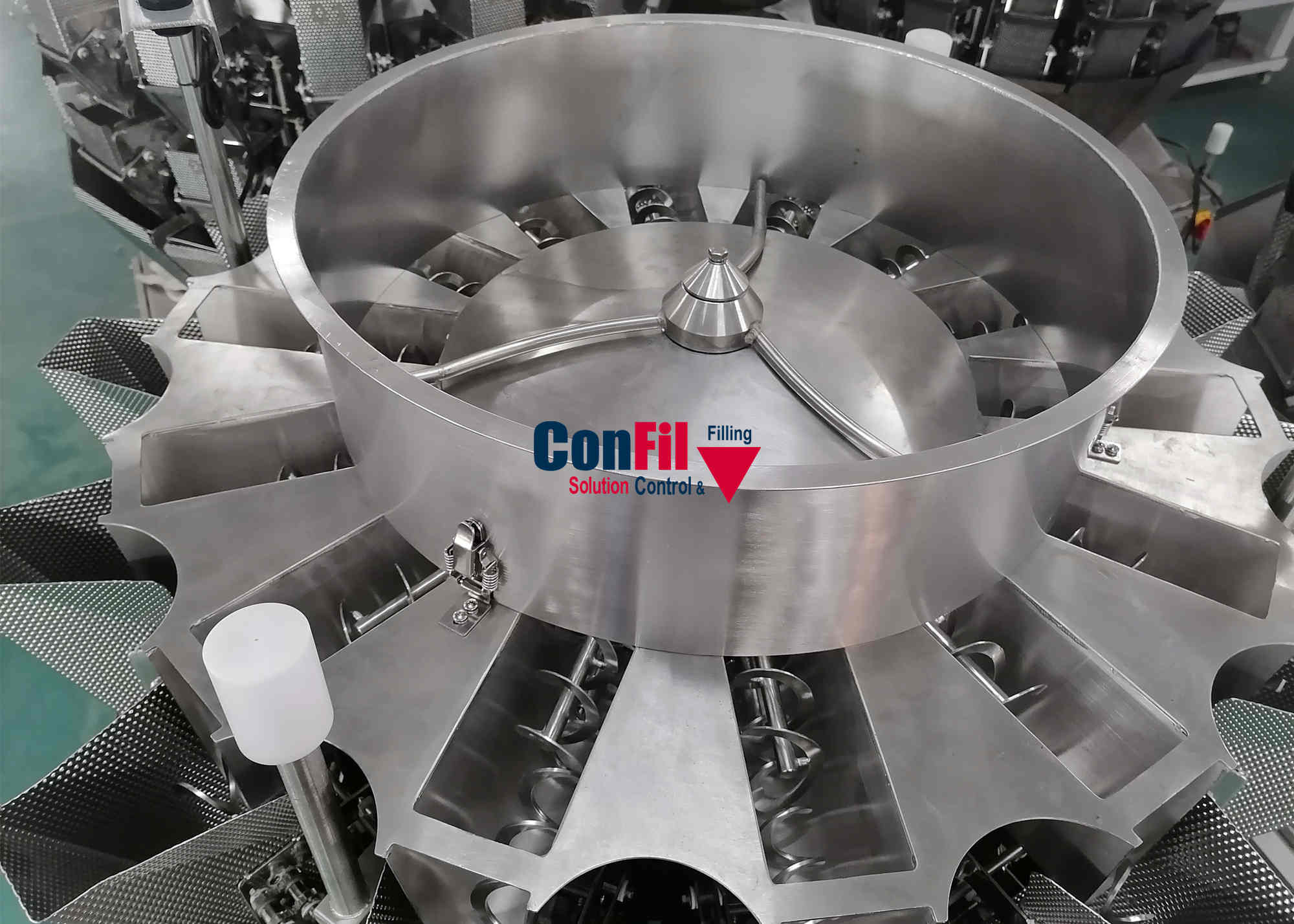

Rotary main distributor

we designed it running like “Fan”, it push pickles running to avoid accumulation

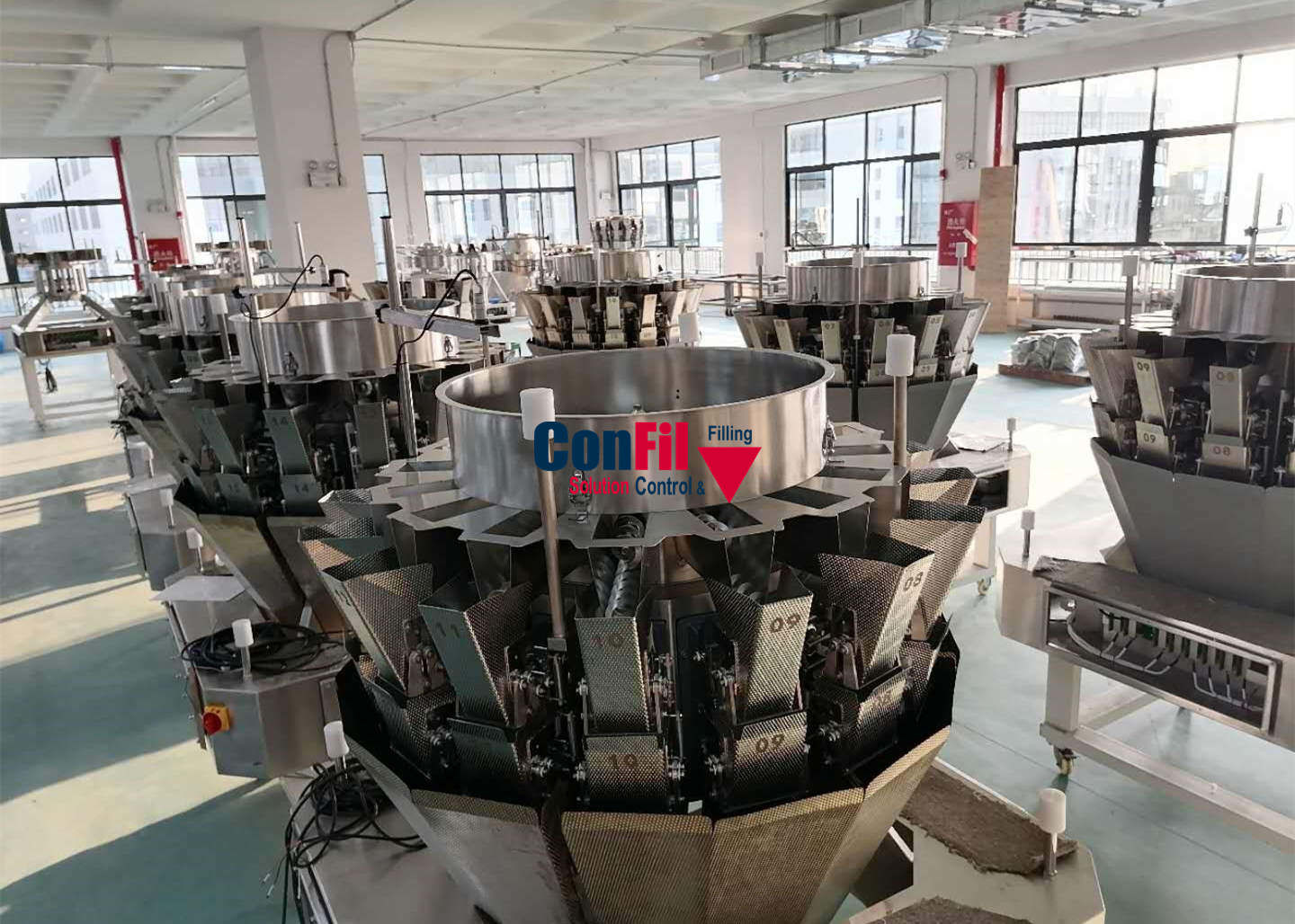

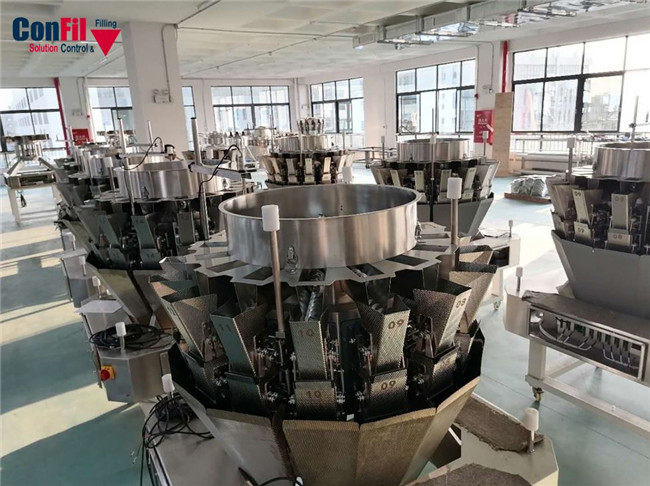

We have delivered over 600 sets of screw feeder weighers in local market for Pickles and other Oily, Sticky, Marinated food.

Competitors in China, they copied FCC-214S-1P-DS, but they never know how to control the double feeder and double scrapper hopper. It is very important to have team with application engineer, design engineer and software engineer, and focus on one project for over 1 year to develop a suitable machine for the user.



ConFil product range:

  • Multihead Weigher
  • Linear Weigher
  • Checkweigher



We also provide ConFil Partner products:

  • Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
  • Vertical Form-Fill-Seal machine
  • Tray Denester
  • Metal detector

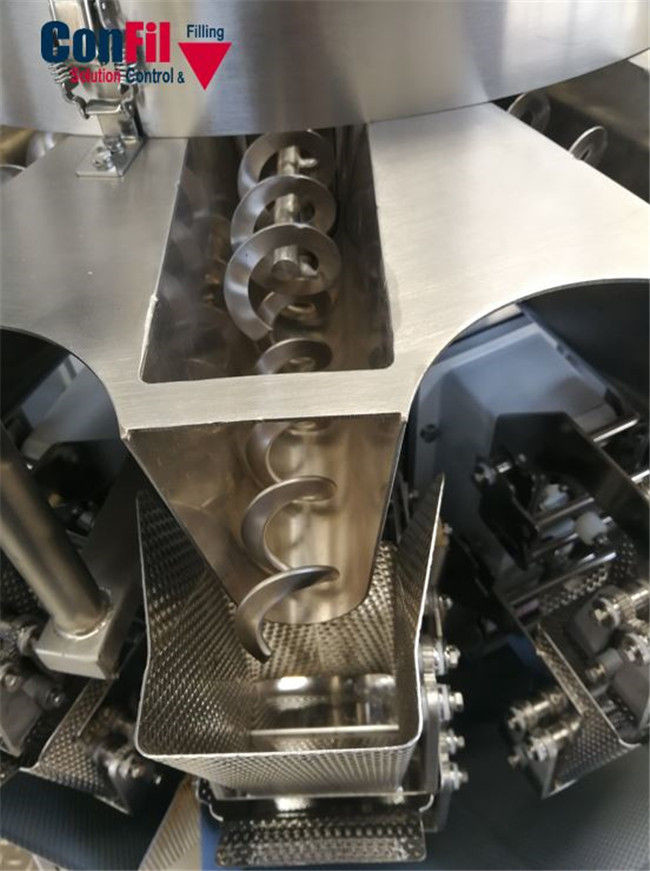

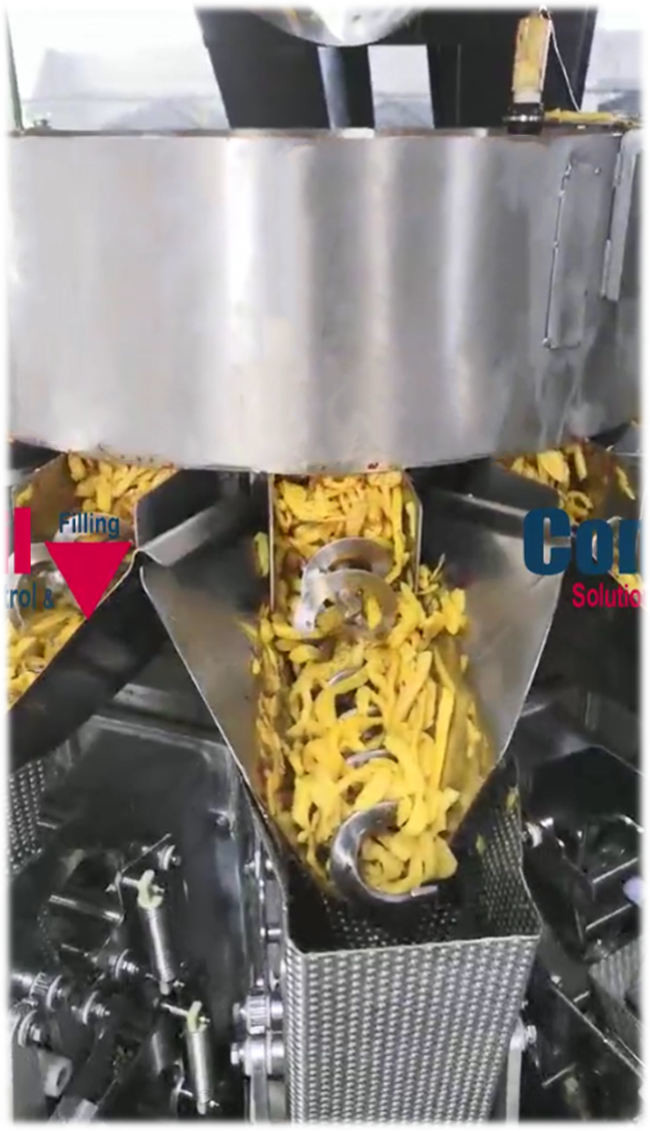

Double Screw Feeder

Screw Feeding Multihead Weigher For Pickles Marinated Vegetable Fruits 0

Please contact us for the unique solution !
