50 Gram Marijuana Buds Multihead Weighing Machine Micro Weigher

1 set
MOQ
USD25,000 ~ 29,000 per set
Price

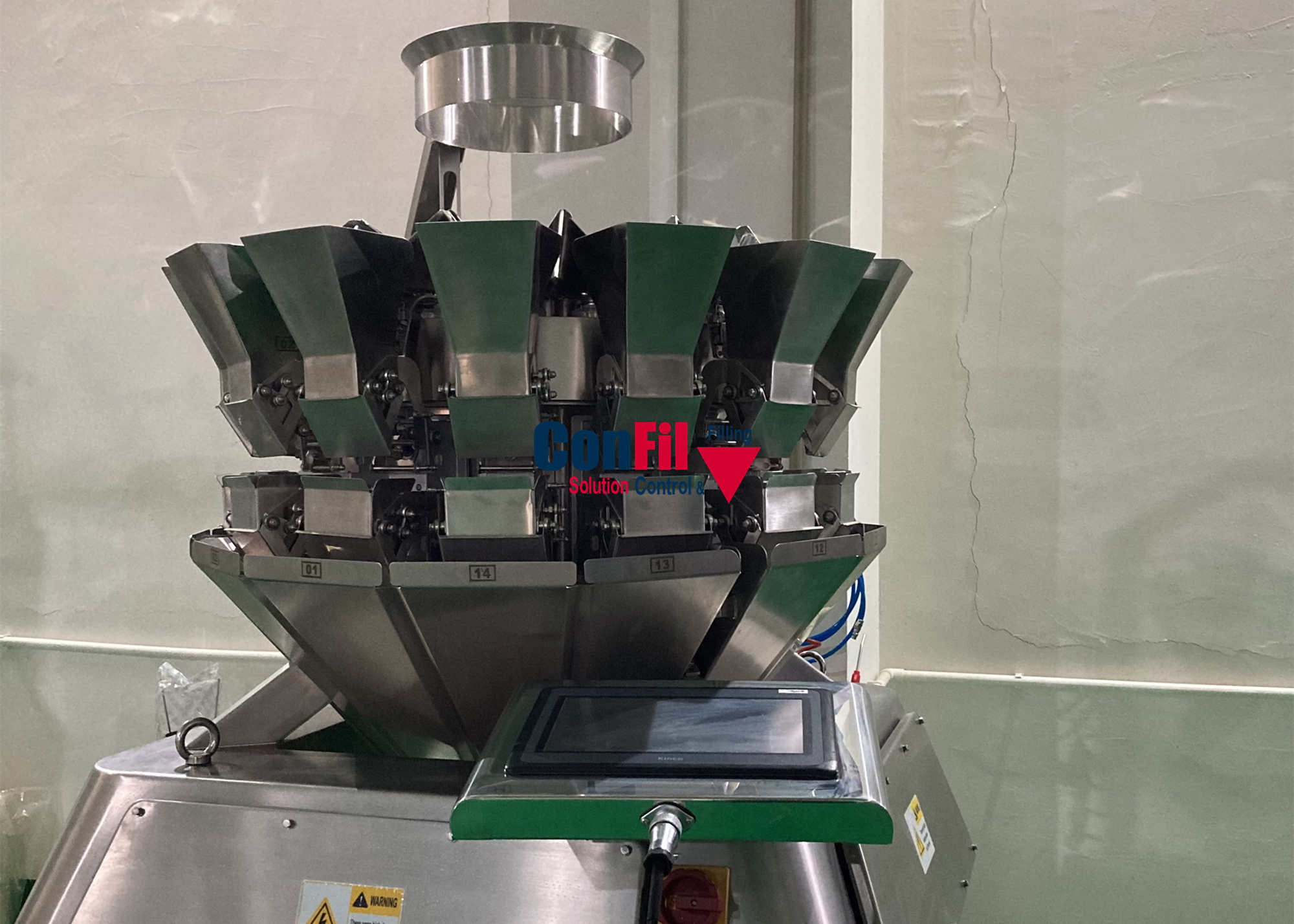

50 Gram Marijuana Buds Multihead Weighing Machine Micro Weigher
Features Gallery Product Description Request A Quote
Features
Specifications
Weighing Head: 14 Head, 0.2 Liter
Food Contacting Surface: Sanitary Stainless Steel, Polished Surface
Typical Applications: Seeds, Marijuana Buds, Canabis Flower
Weighing Range: 1 To 50 Gram, Recommended
Weighing Speed: Max. 30 Cycles Per Minute
Accuracy: +0.1 Gram Depends On Application
Minimum Graduation: 0.01 Gram
Ingress Protection: IP 51
Power Supply: 100~120Vac, 200~240Vac, 50/60Hz, Single Phase, 1.2kW
Machine Weight: Approx. 350 KG
High Light:

Marijuana Buds Multihead Weighing Machine

,

50 Gram 14 head weigher

,

50 Gram Multihead Weighing Machine

Basic Infomation
Place of Origin: China
Brand Name: ConFil
Certification: CE
Model Number: FCPC-214V-1D micro / micro plus
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 15 ~ 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Product Description

Multihead Weighing Machine Multihead Weigher for Marijuana Buds Micro Weigher Higher Precision for Ultra Low Weight





Introduction:

The Micro weigher is designed for Ultra-low target weight. In most of applications it can reach +0.1gram average accuracy, with minimum graduation 0.01gram, such as Marijuana Buds and Seeds.



Pre-Checking Unit, it double check the filling weight (net weight) before filling them into pouches or containers



Standard Features:

1- HBM double-beam strain gauge load cell, C3.

2- Products feeding level is controlled by load cell.

3- Hoppers are driven by stepper motor.

4- Stepper motors are casing in aluminum casting with Teflon coating.

5- CAN bus electronic structure.

6- Compact design, smaller footprinter.

7- 10.1inch color touch screen.

50 Gram Marijuana Buds Multihead Weighing Machine Micro Weigher 0



Model

Numbers

of

weighing

head

Weighing

Hopper

volume

(Liter)

Recommend

weighing

Range

(gram)



Max.

Weighing

Speed

(cycles

per minute)

Esteemed accuracy

(gram)

Numbers

of

discharging

point

Ingress

protection

Machine

weight

(approx. Kg)

FCPC-214V-1D micro 14 0.2 1 ~ 50 40 + 0.1 1 IP50 350
FCPC-214V-1D micro plus 14 0.3 1 ~ 50 40 + 0.1 1 IP50 450



FCPC-214V-1D Micro Plus

1- The inclined cabinet provides easy access during installation and maintenance, also 5mm stainless steel is applied.
2- The volume of WH increased from 200ml to 300ml, better performance when the target is over 4gram marijuana buds.
3- Enhanced software for Pre-Checking Unit.
4- Available with Cross-Head Feeder in belt conveying execution.
5- HMI is upgraded to 12.1 inch.


 50 Gram Marijuana Buds Multihead Weighing Machine Micro Weigher 1
