Multihead Weighing Sugar Pouch Packing Machine With Central Tank Storage

1 set
MOQ
USD6000 ~ 12000 per set
Price
Multihead Weighing Sugar Pouch Packing Machine With Central Tank Storage
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Multihead Weigher Filling Packing Machine Sugar
Weighing Head: 10 Head, 14 Head, 1.6Liter, 2.5Liter Or 3Liter
Food Contacting Surface: Sanitary Stainless Steel, Polished Surface
Typical Applications: Free-Flow Granular Products, Sugar
Weighing Range: 12 To 5000 Gram, Recommended
Weighing Speed: Max. 100 Cycles Per Minute
Accuracy: +1.0 Gram Depends On Application
Minimum Graduation: 0.1 Gram
Ingress Protection: IP 63
Power Supply: 100~120Vac, 200~240Vac, 50 / 60Hz, Single Phase, 2.8kW
Machine Weight: Approx. 500 KG
High Light:

Multihead weighing sugar pouch packing machine

,

5000 Gram 10 head multihead weigher

,

5000 Gram sugar pouch packing machine
Basic Infomation
Place of Origin: China
Brand Name: ConFil
Certification: CE
Model Number: FCC-210VV-Tank
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 5 ~ 15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Product Description

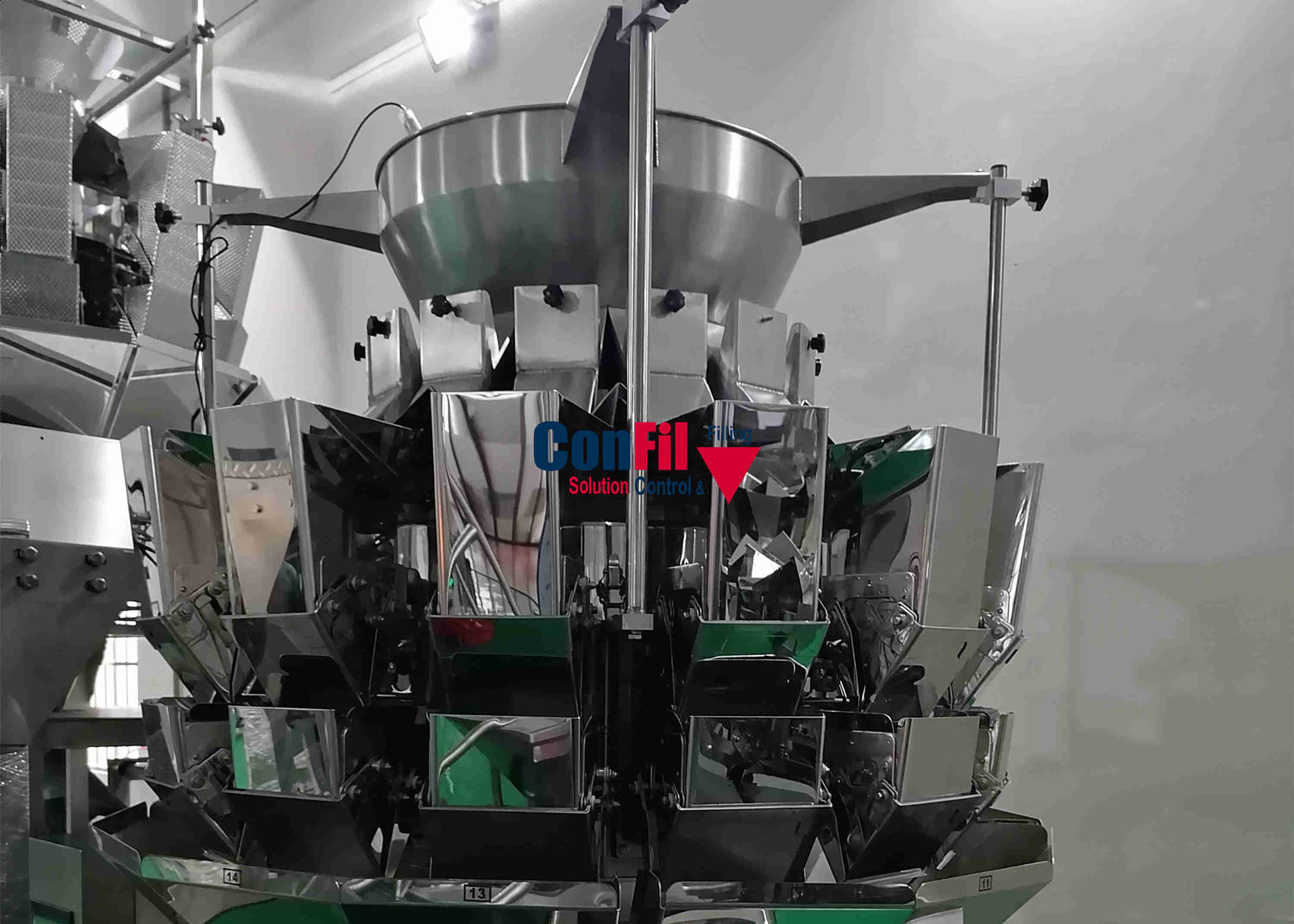

Multihead Weighing Machine Multihead Weigher for Sugar with Central Tank Storage





Standard features:

1.Vibration feeding or screw feeding into hoppers
2.Double-beam strain gauge load cell, C3
3.0.1 gram minimum graduation
4.Products feeding level is controlled by optical sensor
5.Product contacting surfaces are made in sanitary stainless steel
6.Hoppers are driven by stepper motor
7.Stepper motors are casing in aluminum casting with Teflon coating
8.10.1inch color LCD touch screen
9.CAN bus electronic structure
10.Air consumption depends on configuration



Special features:

1. Rigid design, machine weight is approx. half ton
2. More efficient feeding than using main feeder, especially when the target weight is over 800gram
3. Wing type timing hopper design allows much clearer sealing window for packaging machine



Model

Numbers

of

weighing

head

Weighing

Hopper

volume

(Liter)

Recommend

weighing

Range

(gram)



Max.

Weighing

Speed

(cycles

per minute)

Esteemed accuracy

(gram)

 Food contacting surface

Numbers

of

discharging

point

Ingress

protection

Machine

weight

(approx. Kg)
FCC-210V-2D tank / 210V-3D tank 10 1.6 / 2.5 / 3.0 12 ~ 1000 60 + 1.0 / + 1.5 Polished 1 IP63 370
FCC-214V-2D tank / 214V-3D tank 14 1.6 / 2.5 / 3.0 12 ~ 5000 100 + 1.0 Polished 1 IP63 500



Multihead Weighing Sugar Pouch Packing Machine With Central Tank Storage 0Multihead Weighing Sugar Pouch Packing Machine With Central Tank Storage 1
