Multihead Weighing Machine Multihead Weigher for Medical Cotton Ball Micro Weigher Counting Machine

1 set
MOQ
USD25,000 ~ 29,000 per set
Price
Multihead Weighing Machine Multihead Weigher for Medical Cotton Ball Micro Weigher Counting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Weighing Head: 14 Head, 0.2 Liter
Food Contacting Surface: Sanitary Stainless Steel, Polished Surface
Typical Applications: Medical Cotton Ball
Weighing Range: 1 To 50 Gram Or Recommended
Weighing Speed: Max. 30 Cycles Per Minute
Accuracy: +0.1 Gram Depends On Application
Minimum Graduation: 0.01 Gram
Ingress Protection: IP 50
Power Supply: 100~120Vac, 200~240Vac, 50/60Hz, Single Phase, 1.2kW
Machine Weight: Approx. 400 KG
Basic Infomation
Place of Origin: China
Brand Name: ConFil
Certification: CE
Model Number: FCPC-214RV-1D micro
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 15 ~ 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Product Description

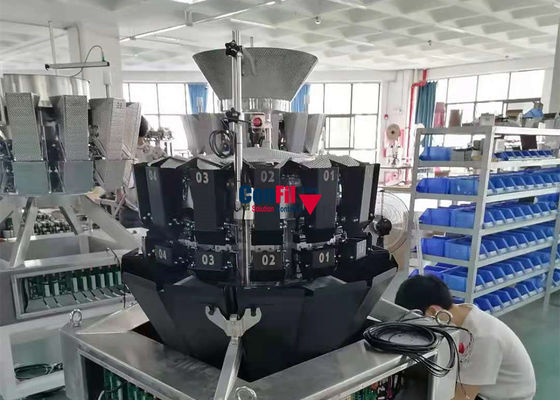

Multihead Weighing Machine Multihead Weigher for Medical Cotton Ball Micro Weigher Counting Machine

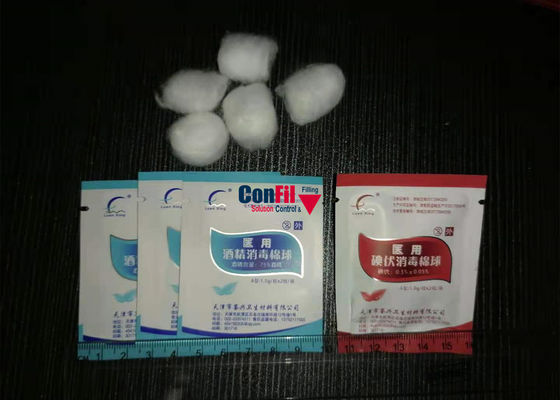

ConFil get this order from a VFFS manufacture in North of China. The Cotton Ball is quite light, unit weight range is between 0.17 to 0.26 gram, target weight is 5 pieces.

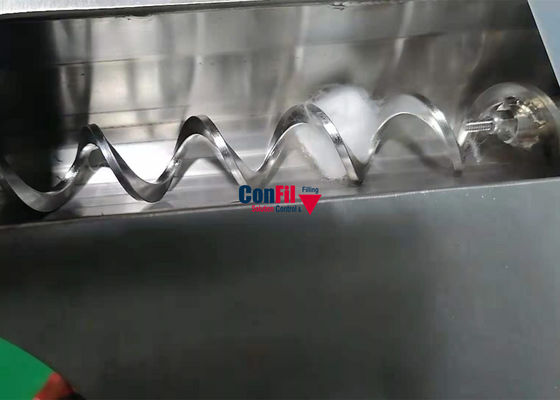

This is the first time we step into MCP application, and we only spent 72 hours to prvovide prospective solution, with new designed Screw Feeder and Rotary Cone.



Standard Features:

1- HBM double-beam strain gauge load cell, C3.

2- Products feeding level is controlled by load cell.

3- Hoppers are driven by stepper motor.

4- Stepper motors are casing in aluminum casting with Teflon coating.

5- CAN bus electronic structure.

6- Compact design, smaller footprinter.

7- 10.1inch color touch screen.





Model

Numbers

of

weighing

head

Weighing

Hopper

volume

(Liter)

Recommend

weighing

Range

(gram)



Max.

Weighing

Speed

(cycles

per minute)

Esteemed accuracy

(gram)

Numbers

of

discharging

point

Ingress

protection

Machine

weight

(approx. Kg)

FCPC-214RV-1D micro 14 0.2 1 ~ 20 40 + 0.1 1 IP50 400
