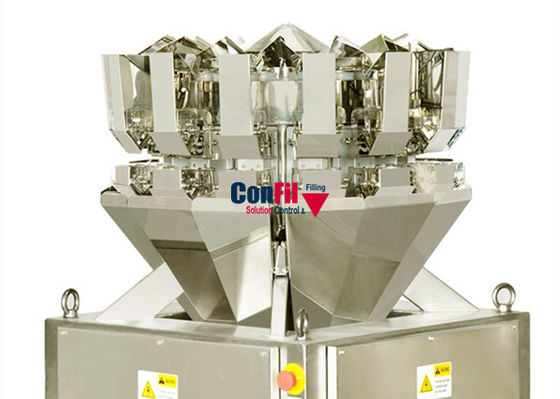

Multihead Weighing Machine Multihead Weigher for Tea Leaves Ultra Low Target Weight Filling Machine
Introduction:
The Micro weigher is designed for Ultra-low target weight. In most of applications it can reach +0.1gram average accuracy, with minimum graduation 0.01gram, such as Marijuana Buds and Seeds.

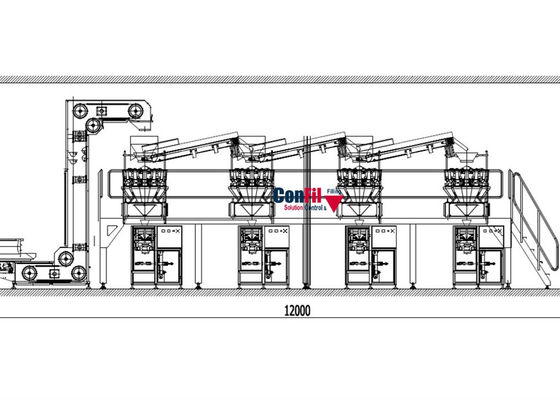

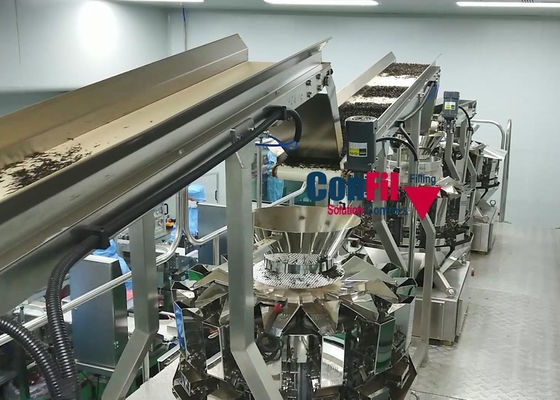

We installed 4 sets of Micro 14Head weigher for Tea Leaves, target weight is 3.9gram. Products feeding from one location for all the weighers.
Standard Features:
1- HBM double-beam strain gauge load cell, C3.
2- Products feeding level is controlled by load cell.
3- Hoppers are driven by stepper motor.
4- Stepper motors are casing in aluminum casting with Teflon coating.
5- CAN bus electronic structure.
6- Compact design, smaller footprinter.
7- 10.1inch color touch screen.
| Model |
Numbers of weighing head |
Weighing Hopper volume (Liter) |
Recommend weighing Range (gram)
|
Max. Weighing Speed (cycles per minute) |
Esteemed accuracy (gram) |
Numbers of discharging point |
Ingress protection |
Machine weight (approx. Kg) |
| FCPC-214V-1D micro | 14 | 0.2 | 1 ~ 50 | 40 | + 0.1 | 1 | IP50 | 350 |
| FCPC-214V-1D micro plus | 14 | 0.3 | 1 ~ 50 | 40 | + 0.1 | 1 | IP50 | 450 |
FCPC-214V-1D Micro Plus
