10 Head VFFS Packaging Equipment With Multihead Weigher

1 set
MOQ
USD9000 - 11000 per set
Price
10 Head VFFS Packaging Equipment With Multihead Weigher
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: VFFS With Weigher In Compact Design
Weighing Head: 10 Head
Food Contacting Surface: Sanitary Stainless Steel, Polished Surface
Typical Applications: Free Flow Granulars
Weighing Range: 13 ~ 500 Gram
Packaging Speed: Max. 60 Bags Per Minute
Accuracy: +1.5 Gram Depends On Application
Minimum Graduation: 0.1 Gram
Ingress Protection: IP 61
Power Supply: 100 - 120Vac, 200 - 240Vac, Single Phase, 50 / 60Hz, 5.2kW
Machine Weight: Approx. 700 KG
High Light:

10 Head vffs packaging equipment

,

CE vertical ffs machine

,

CE vffs packaging equipment

Basic Infomation
Place of Origin: China
Brand Name: ConFil Partner
Certification: CE
Model Number: CFP-SV400CP
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 10 - 25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Product Description

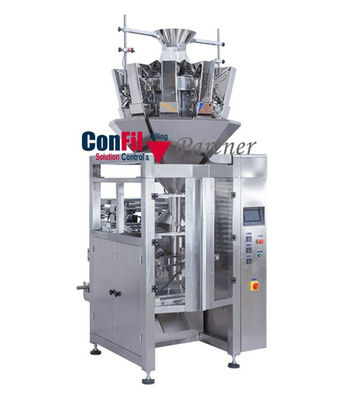

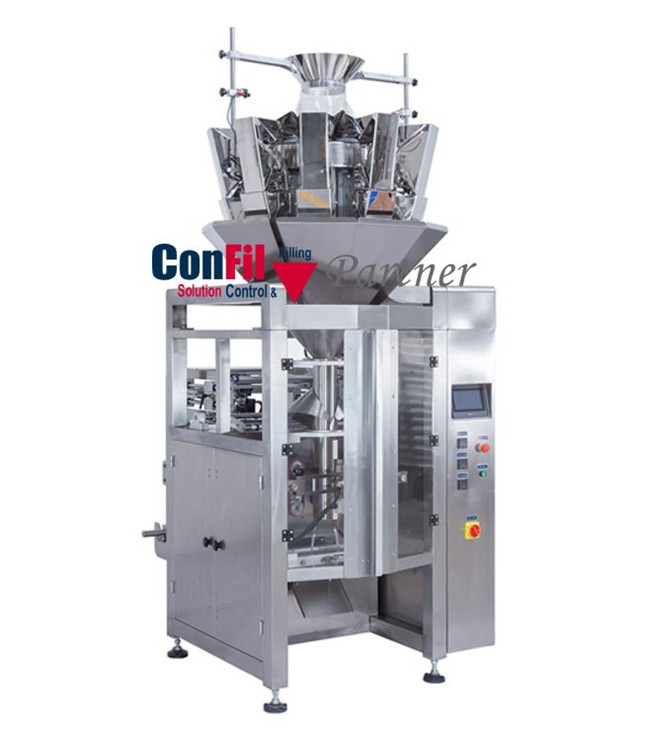

Vertical Form Fill Seal Machine with Multihead Weigher in Compact Design





This compact model is built by ConFil Partner factory, their core business is buidling packaging machine, and ConFil is responsible for the weigher intergration. Generally it comes with FCC-210V-1D.



Specifications



Model   CFP-SV400CP
Bag length   20 ~ 300mm
Bag width   60 ~ 200mm
Packaging filim   sealing layer with PE or PP
 Printer   Thermo ribbon printer, other model is available on request.
Output conveyor   PVC belt conveyor

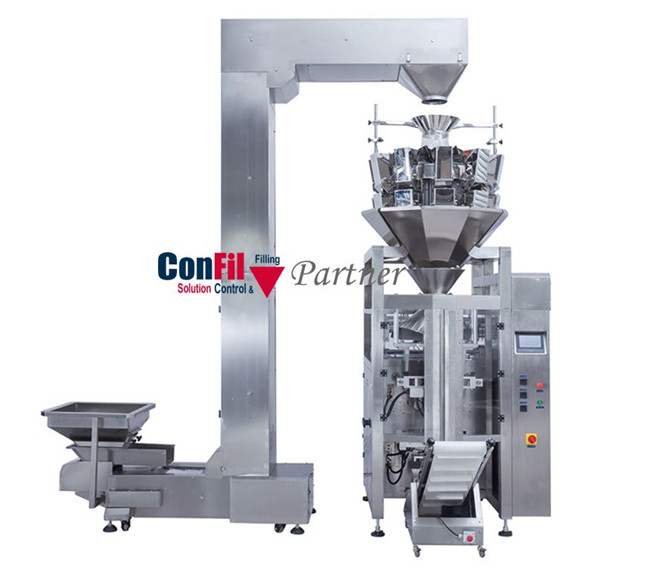

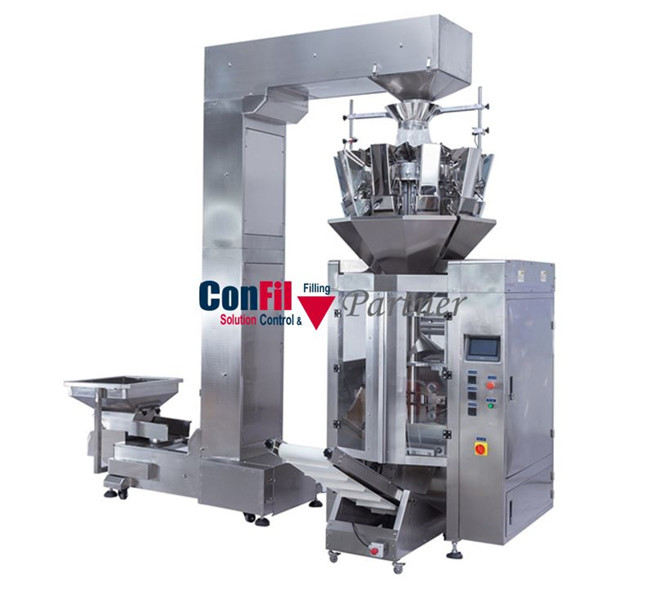

Feeding system: conveying belt, bucket elevator are optional.



ConFil product range:

  • Multihead Weigher
  • Checkweigher



We also provide ConFil Partner products:

  • Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
  • Vertical Form-Fill-Seal machine
  • Tray Denester
  • Metal detector
