5000gram Automatic Multihead Weigher 14 Head Weigher

1 set
MOQ
USD13000 - 20000 per set
Price
5000gram Automatic Multihead Weigher 14 Head Weigher
Features Gallery Product Description Request A Quote
Features
Specifications
Weighing Head: 14 Head
Food Contacting Surface: Sanitary Stainless Steel, Polished / Embossed / Teflon Coated
Typical Applications: Fresh Food, Marinated Food,Ready Meal
Weighing Range: See The Table Below
Weighing Speed: Max. 60 Cycles Per Minute
Accuracy: +3.0 Gram Depends On Application
Minimum Graduation: 0.1 Gram
Ingress Protection: IP 65
Power Supply: 200 - 240Vac, 50 / 60Hz, Single Phase
Machine Weight: See The Table Below
High Light:

5000gram Automatic Multihead Weigher

,

5000gram 14 Head Weigher

,

Automatic Multihead Weigher 14 Head

Basic Infomation
Place of Origin: China
Brand Name: ConFil
Certification: CE
Model Number: FCC-214RS-33P-DS
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 5 - 15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Product Description

Automatic Multihead Weigher 14Head Weigher with Screw Feeder Screw Filling Machine Double Layer Screw 3 Liter WH





Model

Numbers of

weighing head

Weighing Hopper

volume (Liter)

Recommend

weighing

Range (gram)

Max. Weighing Speed

(cycles per minute)

Esteemed accuracy

(gram)

Machine

weight

(approx. Kg)

FCC-214RS-33P-DS

14 3.0

12 ~ 5000

60

+/- 3.0

550



1- Double Screw Feeder

Originally designed by ConFil.

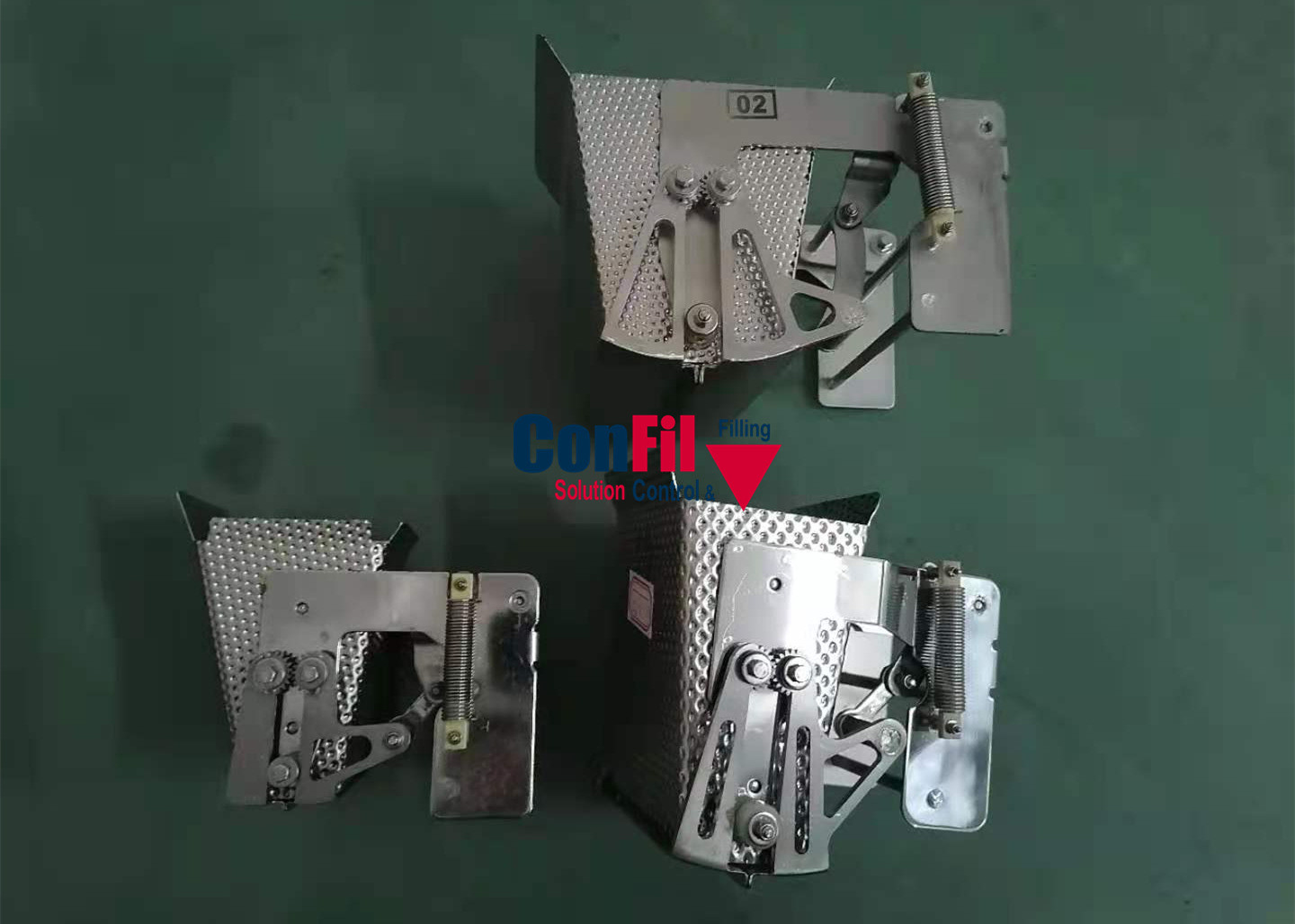

2- Scraper gate in double opening execution

Originally designed by ConFil.



3- Rotary main distributor

Originally designed by ConFil.

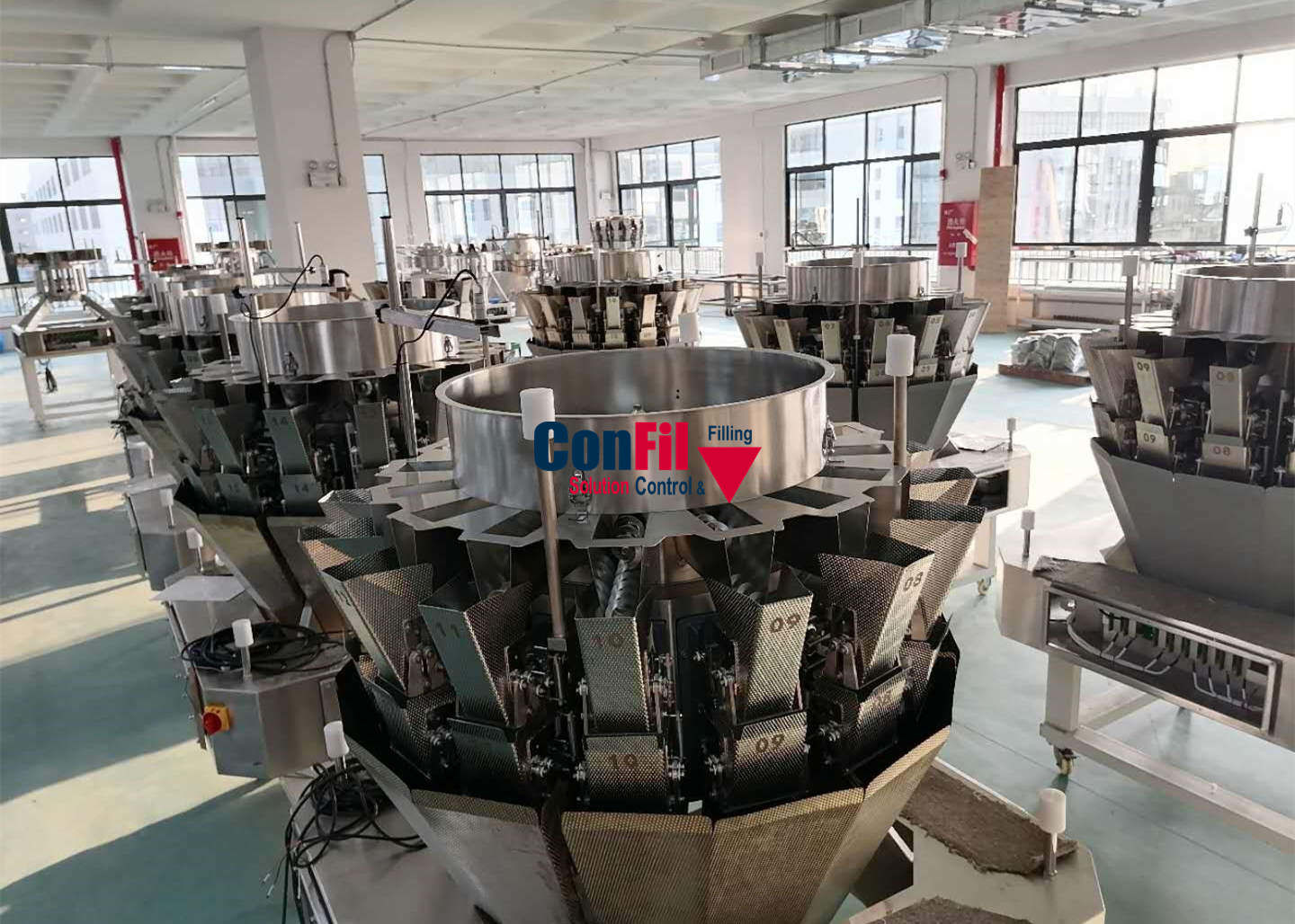

We have delivered over 600 sets of screw feeder weighers in local market for Pickles and other Oily, Sticky, Marinated food.

Competitors in China, they copied FCC-214S-1P-DS, but they never know how to control the double feeder and double scrapper hopper. It is very important to have team with application engineer, design engineer and software engineer, and focus on one project for over 1 year to develop a suitable machine for the user.







ConFil product range:

  • Multihead Weigher
  • Linear Weigher
  • Checkweigher



We also provide ConFil Partner products:

  • Rotary Packer for pre-made pouch (sealing only, vacuum or MAP)
  • Vertical Form-Fill-Seal machine
  • Tray Denester
  • Metal detector



Modified Model from FCC-214RS-15P, designed with 3 liter weigher hopper, max.target weight is up to 5kg.

5000gram Automatic Multihead Weigher 14 Head Weigher 0

Please contact us for the unique solution !
